Product - Power Analyzers

WT332E Digital Power Analyzer

Standby Power Measurements, Energy Star®, SPEC Power® and IEC62301/EN50564 Evaluation and Testing of Batteries, Home Appliances and Uninterruptible Power Supplies (UPS).

The WT300E series digital power analyzer provides extremely low current measurement capability down to 50 micro-Amps, and a maximum of up to 26 Amps RMS. This instrument is ideal for engineers performing stand-by power measurements, Energy Star®, SPECpower and IEC62301 / EN50564 testing, battery charger and other low-level power measurements.

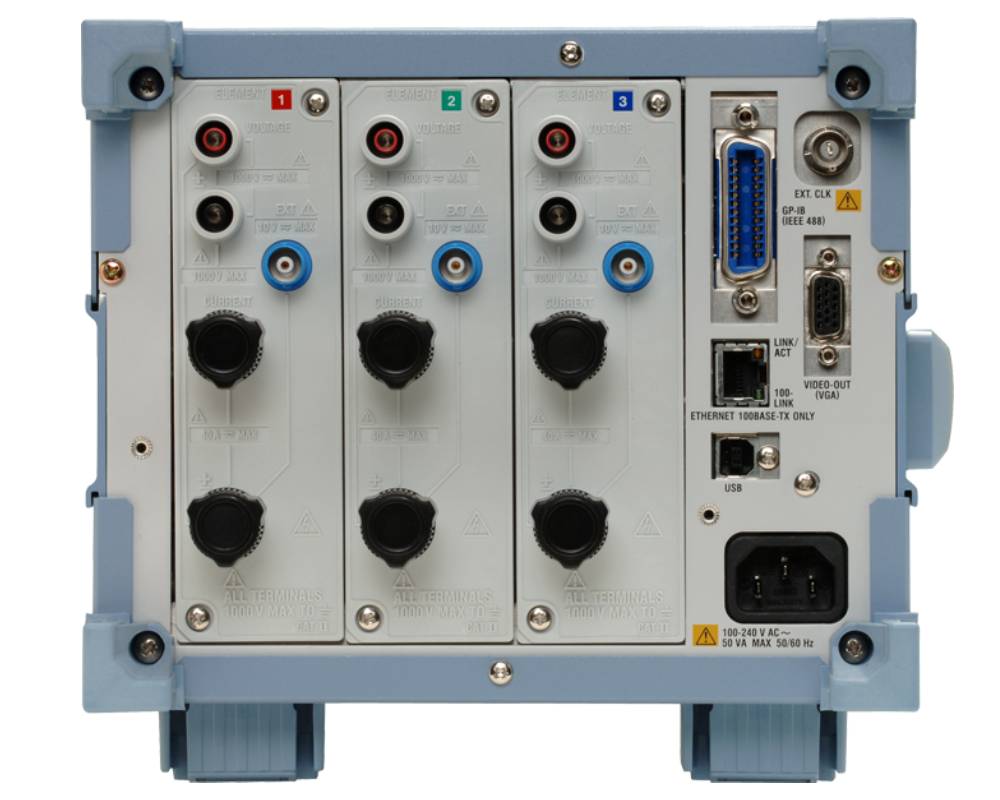

WT500 - Mid Range

Power and Harmonic (THD) Measurements with Independent Range Controls.Efficiency measurements of AC/DC or DC/AC Inverters & Motors.The WT500 Power Analyzer excels at single- and three-phase power measurements. Standard features include a color TFT display and USB interface for communications and memory. The instrument has a basic power accuracy of 0.1%, maximum inputs of 1000 V, 40 A and a measurement bandwidth of DC to 100 kHz.

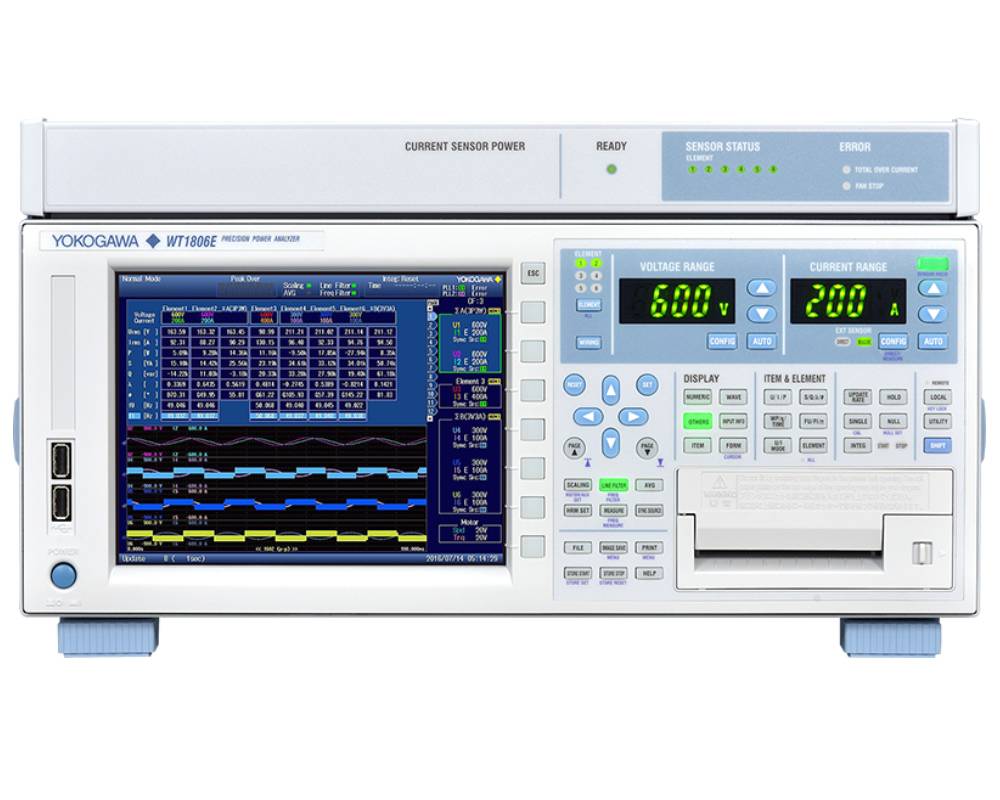

WT1800E - High-Performance

The WT1800E is a high-performance power analyzer that guarantees power accuracy of 0.05% of reading plus 0.05% of range. It is capable of harmonics analysis up to the 500th order of a 50/60 Hz fundamental frequency. With up to 6 input channels, a wide range of display and analysis features, and PC connectivity, the WT1800E is the ideal tool for engineers to accurately measure power characteristics and efficiency of electrical devices.

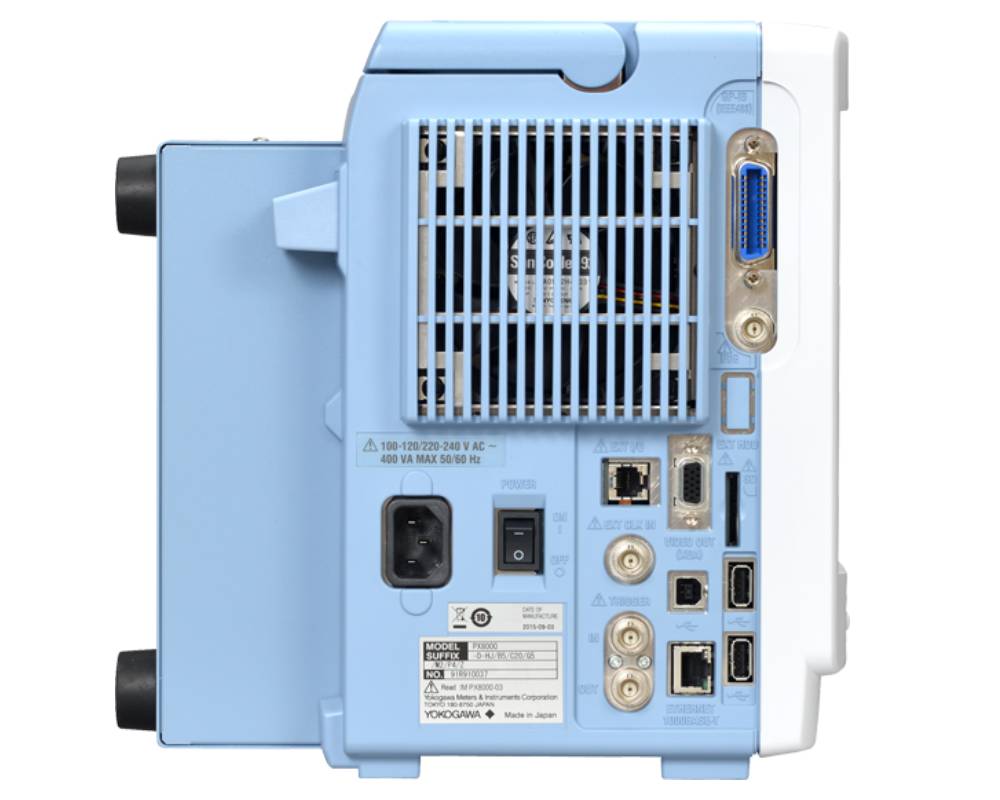

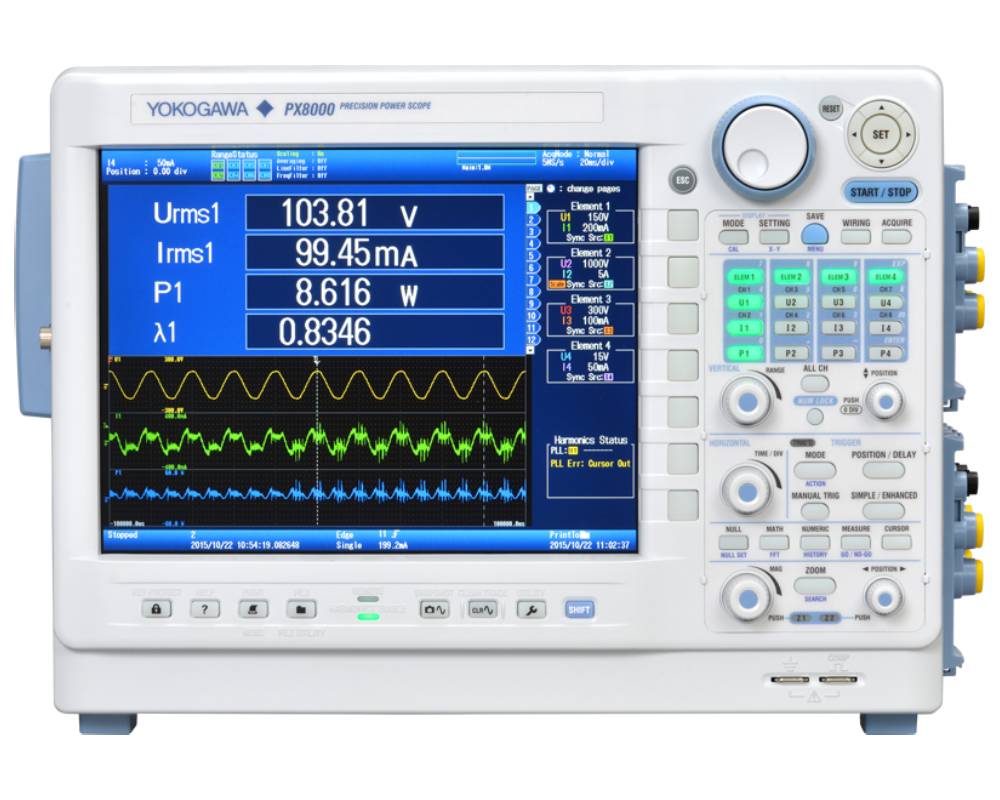

PX8000 - Precision Power Scope

Transient/Start-up Waveform Capture & Power Analysis. Harmonics, Cycle by cycle and FFT analysis.The PX8000 is the world's first precision power scope, bringing oscilloscope-style time-based measurement to the world of power analyzers. With up to four channels, it can perform standard multi-phase power measurements. These measurements exist alongside oscilloscope-specific features such as cursor-based specific time period measurements to enable analysis of waveforms with transient components.

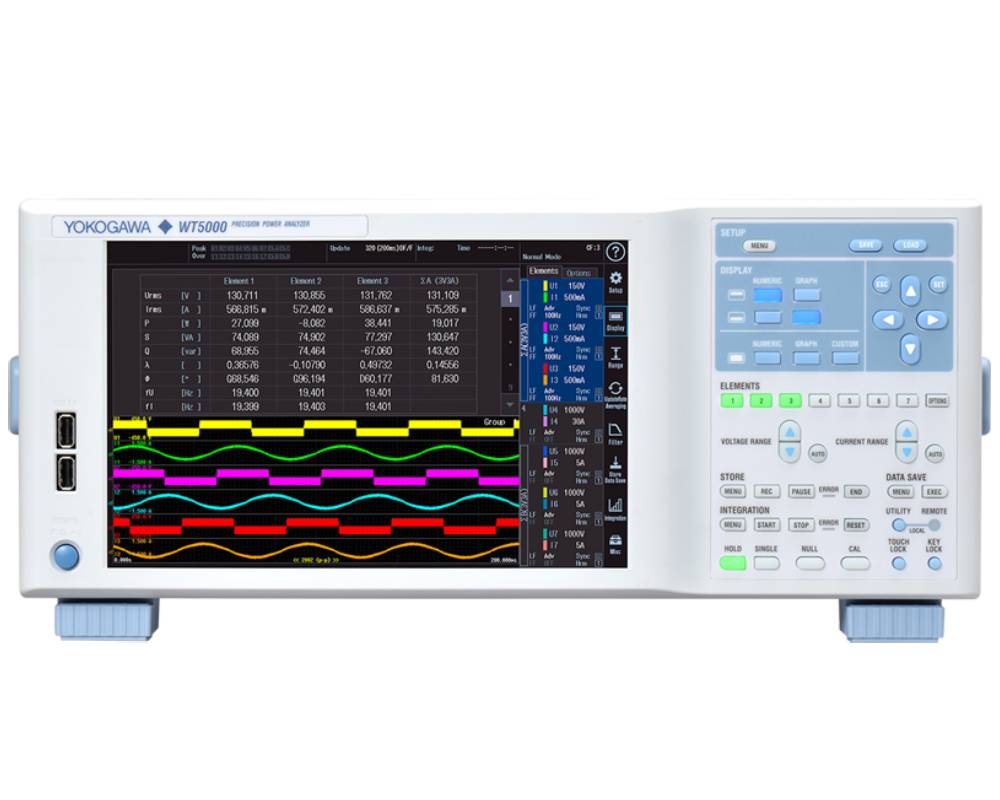

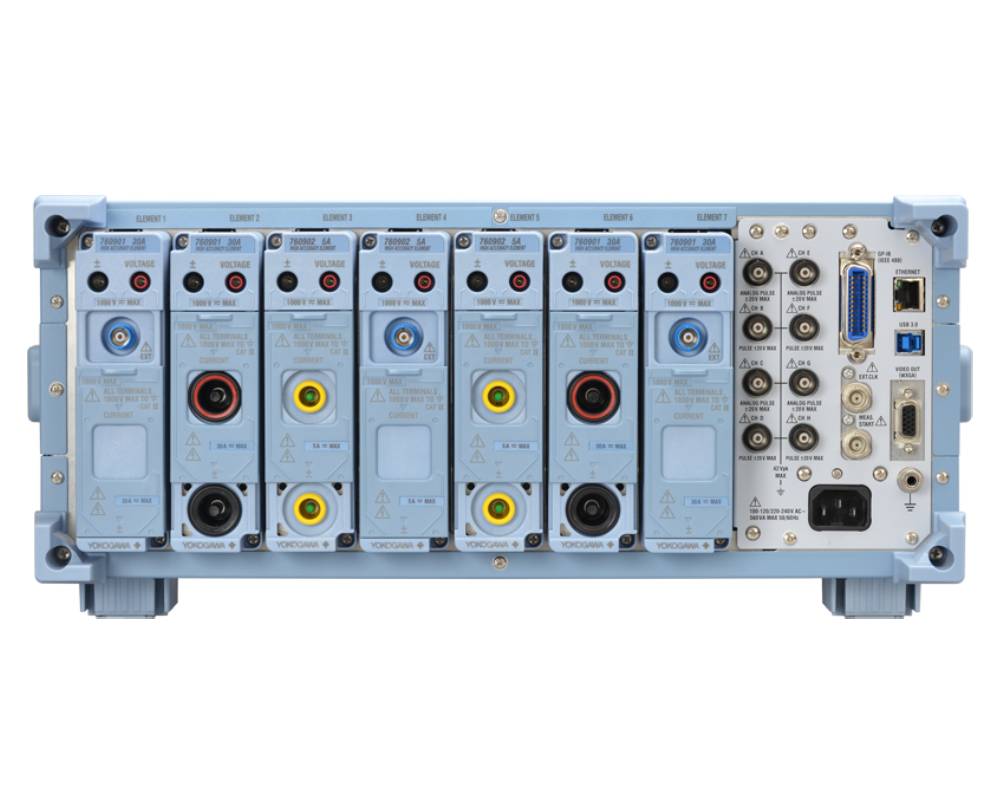

WT5000 Precision Power Analyzer

Superb accuracy has never been easier, thanks to multi-channel measurements, custom triggers and computations, advanced harmonic analysis and filtering, and user-friendly operation. The Yokogawa WT5000 precision power analyzer is a versatile platform that delivers extraordinary precision and exceptional performance for the most demanding applications. Equipped with seven user swappable and reconfigurable input elements plus four motor channels, the WT5000 high accuracy power meter is an ideal instrument for electrical and mechanical power and efficiency measurements. The Yokogawa power analyzer is now listed as an accepted device for SPEC Power testing and IEC harmonic and flicker standards. Its out-of-the-box software solution, highly responsive touchscreen, and intuitive menu operations for simple connection, configuring, and use make the WT5000 an ideal instrument for your testing needs..
